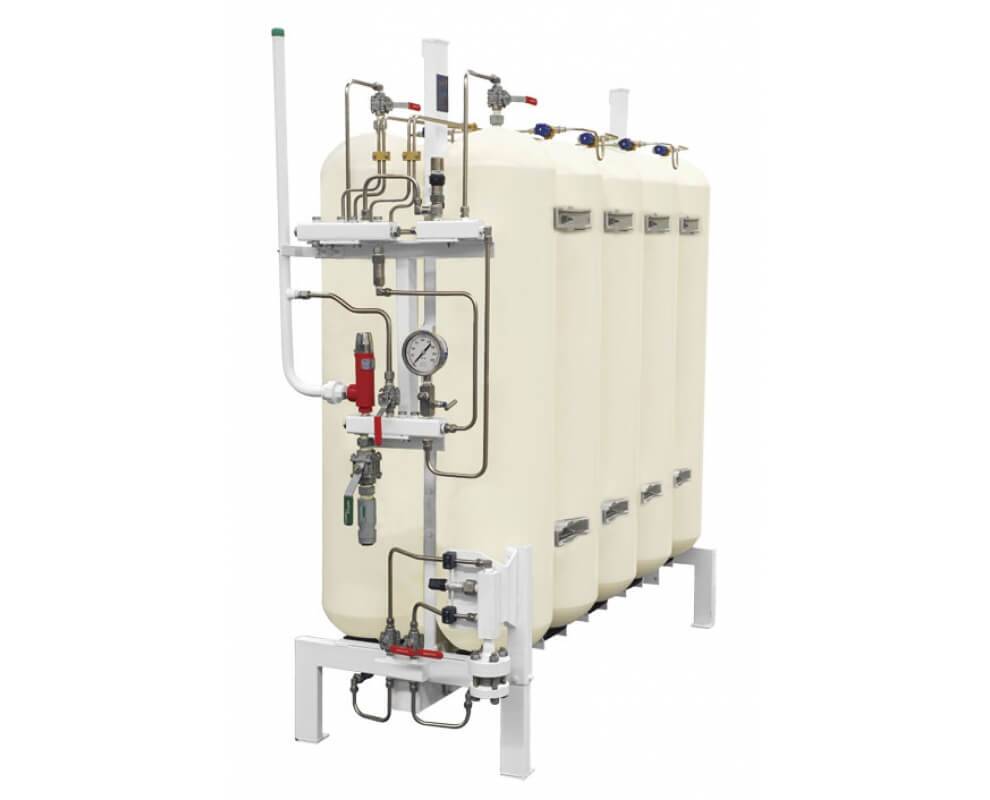

Standard Storage

Aspro storage system is designed to be adaptable to the storage needs of each station because it consists in a set of cylinders assembled on a self-support skid, guaranteeing the constant supply of gas during the refilling.

  • Pressure detector
  • Manometer
  • Security valve
  • Over flow valve
  • Cylinder valve
  • Non return valve
  • Stainless steel high ressitance pipes
  • Priority valves
Standard Storage

Aspro storage system is designed to be adaptable to the storage needs of each station because it consists in a set of cylinders assembled on a self-support skid, guaranteeing the constant supply of gas during the refilling.

  • Pressure detector
  • Manometer
  • Security valve
  • Over flow valve
  • Cylinder valve
  • Non return valve
  • Stainless steel high ressitance pipes
  • Priority valves
  • Double neck cylinder
  • Cabinet
  • Drain system
  • Knock down tank to separate liquids from drain system
  • Panel system
  • Institutional design and colour
  • Actuated priority valve system
  • Storage capacity according to customer requirements
  • Pressure transducer
  • Outlet safety valve
  • variablesstandardBrazil StandardCabinetThree Lines
    Height
    2,235mm / 7'4"2,115mm / 6Т11Ф2,235mm / 7Т4Ф2,280mm / 7Та6Ф
    Width
    2140mm / 7'1,154mm / 3Т9Ф1,100mm / 3Т 7Ф1,560mm / 5Т 1Ф
    Lenght
    1,100mm / 3'7"1,154mm / 3Т9Ф2,280mm / 7Та6Ф3,680mm / 12Т 1Ф
    Weight
    2,000kg / 4,409lbs1,700kg / 3,747.8lbs1,790kg / 3,946.2lbs5,900kg / 1,3007.2lbs
