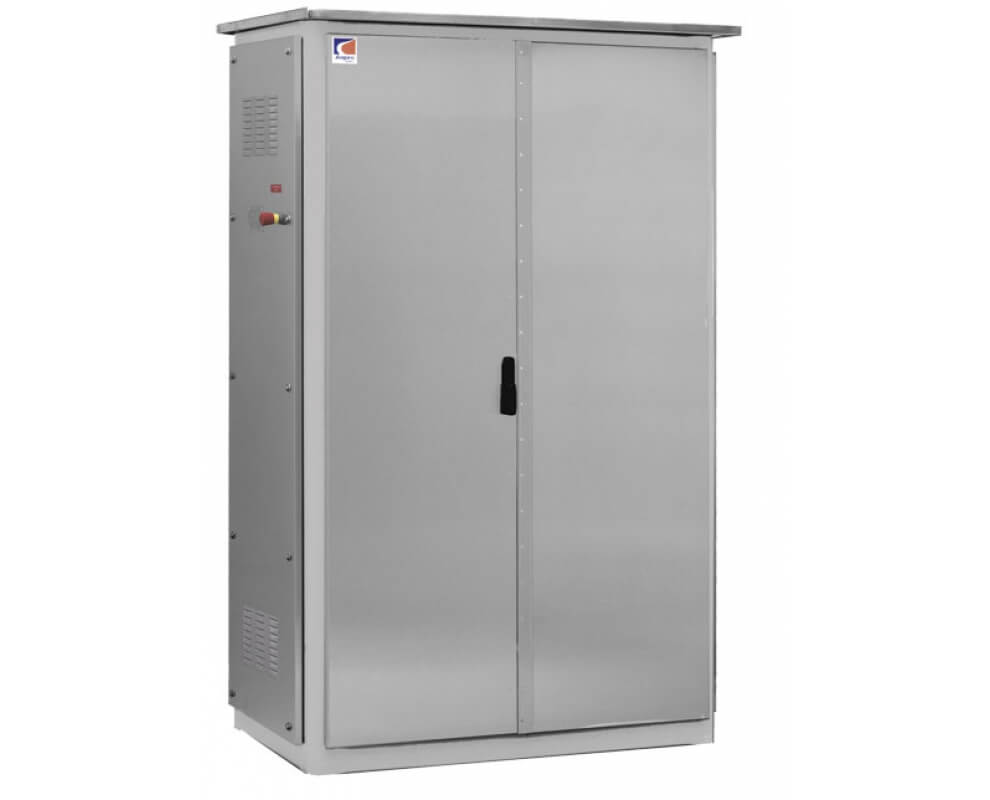

Explosion Proof Control Panel

Explosion proof control panels are specially designed to be installed in Class 1 Div 1 classified areas and coordinate the compressor´s performance, measure and safety system.

  • Star Delta start system
  • Connection to external capacitor bench
  • Safety system incorporated with emergency stop push button
  • Reading of electrical parameters
  • Thermo magnetic protection for 3 dispensers
  • Thermal protection for main electric motor and air cooler electric motor
  • Color touch screen panel
  • Zener safety barrier included
  • Prepared for measure pressure and temperature measuring through analogical and digital signals
  • Approved for work in Class 1, Div. 2 area
  • Maximum power 185kW
Explosion Proof Control Panel

Explosion proof control panels are specially designed to be installed in Class 1 Div 1 classified areas and coordinate the compressor´s performance, measure and safety system.

  • Star Delta start system
  • Connection to external capacitor bench
  • Safety system incorporated with emergency stop push button
  • Reading of electrical parameters
  • Thermo magnetic protection for 3 dispensers
  • Thermal protection for main electric motor and air cooler electric motor
  • Color touch screen panel
  • Zener safety barrier included
  • Prepared for measure pressure and temperature measuring through analogical and digital signals
  • Approved for work in Class 1, Div. 2 area
  • Maximum power 185kW
  • Inter-stage measure of pressure and temperature through analogical signals
  • Remote monitoring system
  • variablesExplosion proof
    Height
    2,100mm / 6'10"
    Width
    1,280mm / 4'2"
    Lenght
    700mm / 2' 3"
    Weight
    570kg / 1,257lbs
